Instrument Cluster

The screen display informs you of the vehicle information. The displayed content differs between the main screen and the other screens.

The display changes each time is pressed.

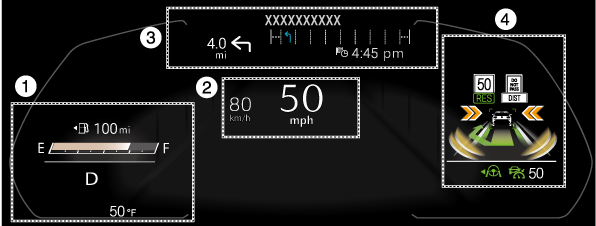

Main Screen

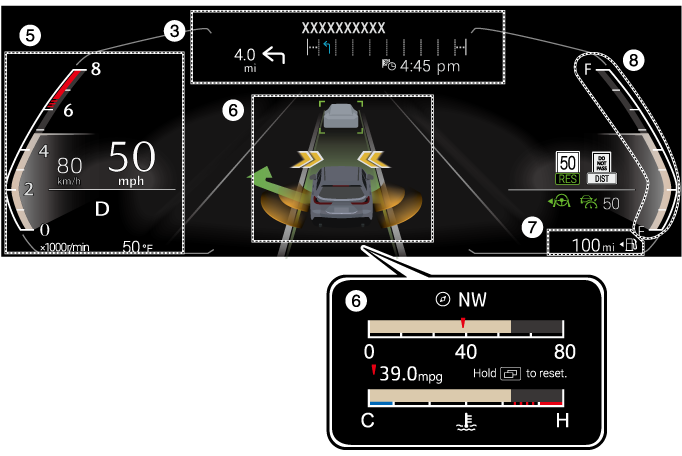

Other Screen

1 Maximum driving distance/Shift position display/Outside temperature display/Fuel Gauge

2 Speedometer

3 Navigation information display area

4 i-ACTIVSENSE information

5 Speedometer/Tachometer/Shift position display/Outside temperature display

6 i-ACTIVSENSE information/Fuel economy/Engine coolant temperature/Compass

7 Maximum driving distance

8 Fuel Gauge
