Fully Automatic Climate Control (Rear)

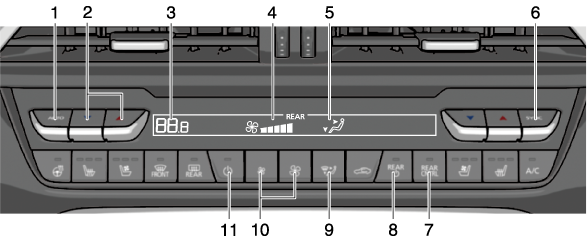

Front

1. AUTO switch

2. Driver's side temperature setting switch

3. Temperature setting display

4. Airflow display

5. Mode selector display

6. SYNC (synchronized temperature) switch

7. Rear control switch

8. Rear climate control system power switch (system on/off)

9. Mode selector switch

10. Fan control switch

11. Climate control system power switch

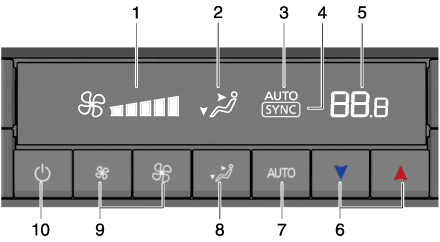

Rear

1. Airflow display

2. Mode selector display

3. AUTO display

4. SYNC (synchronized temperature) display

5. Temperature setting display

6. Temperature setting switch

7. AUTO switch

8. Mode selector switch

9. Fan control switch

10. Climate control system power switch
