Checking the Inspection Locations and Inspection Items

The position and shape of each part may differ slightly depending on the specification.

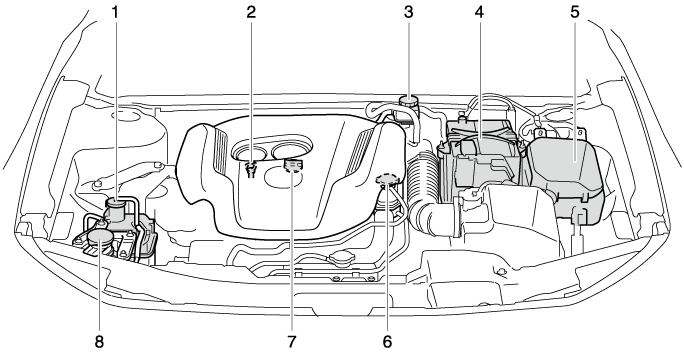

SKYACTIV-G 2.5 and e-SKYACTIV G

  1. Engine coolant reservoir

  2. Engine oil dipstick

  3. Brake fluid reservoir

  4. Lead-acid battery

  5. Fuse block

  6. Cooling system cap

  7. Engine oil-filler cap

  8. Windshield washer fluid reservoir

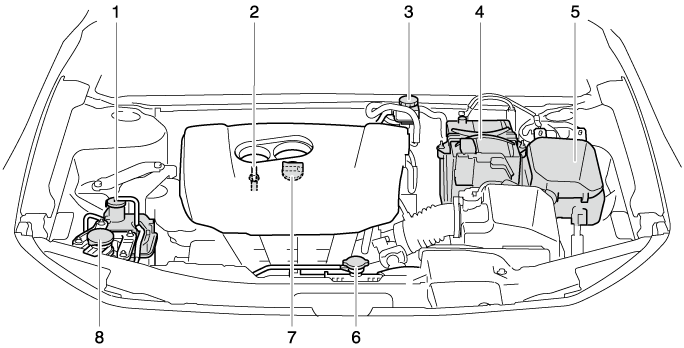

SKYACTIV-G 2.5T

  1. Engine coolant reservoir

  2. Engine oil dipstick

  3. Brake fluid reservoir

  4. Lead-acid battery

  5. Fuse block

  6. Cooling system cap

  7. Engine oil-filler cap

  8. Windshield washer fluid reservoir
