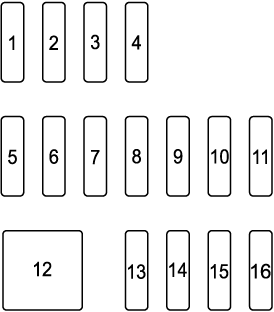

Fuse Panel Description
|
DESCRIPTION |
FUSE RATING |
PROTECTED COMPONENT |
|
|---|---|---|---|
|
1 |
RHT R |
30 A |
Retractable hardtop (RH) (Some Models) |
|
2 |
RHT L |
30 A |
Retractable hardtop (LH) (Some Models) |
|
3 |
― |
― |
― |
|
4 |
ENGINE6 |
10A |
― |
|
5 |
F.OUTLET |
15 A |
Accessory sockets |
|
6 |
― |
― |
― |
|
7 |
AT IND |
7.5 A |
AT shift indicator (Some Models) |
|
8 |
MIRROR |
7.5 A |
Power control mirror |
|
9 |
R_DECK R |
30 A |
Retractable hardtop (RH) (Some Models) |
|
10 |
R_DECK L |
30 A |
Retractable hardtop (LH) (Some Models) |
|
11 |
F.WASHER |
15 A |
Windshield washer |
|
12 |
P.WINDOW |
30 A |
Power windows |
|
13 |
― |
― |
― |
|
14 |
SRS2/ESCL |
15 A |
Electronic steering lock |
|
15 |
SEAT WARM |
20 A |
Seat warmer (Some Models) |
|
16 |
M.DEF |
7.5 A |
Mirror defogger (Some Models) |
