Engine Compartment Overview

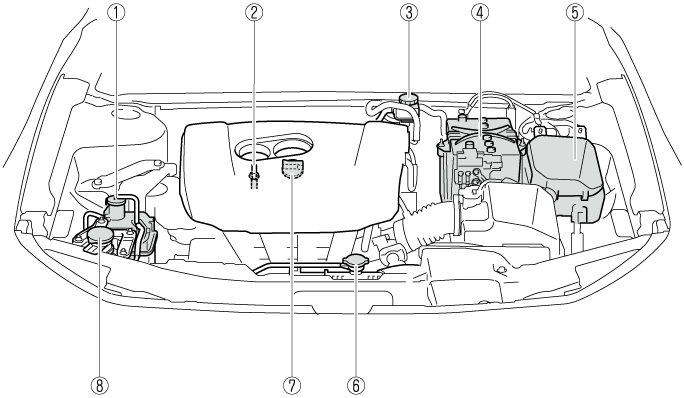

SKYACTIV-G 2.0 and SKYACTIV-G 2.5

  1. Engine coolant reservoir

  2. Engine oil dipstick

  3. Brake fluid reservoir

  4. Battery

  5. Fuse block

  6. Cooling system cap

  7. Engine oil-filler cap

  8. Windshield washer fluid reservoir

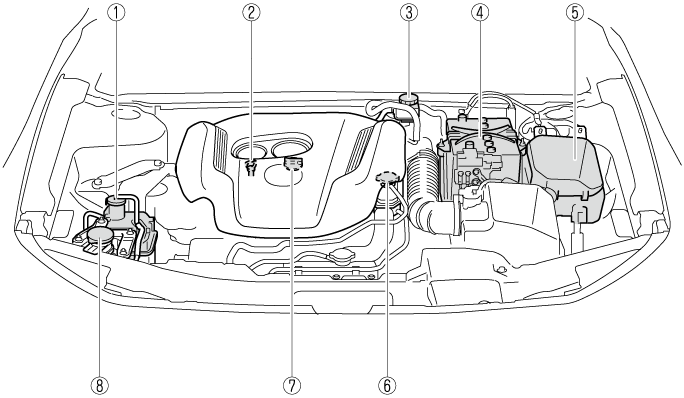

SKYACTIV-G 2.5T

  1. Engine coolant reservoir

  2. Engine oil dipstick

  3. Brake fluid reservoir

  4. Battery

  5. Fuse block

  6. Cooling system cap

  7. Engine oil-filler cap

  8. Windshield washer fluid reservoir
