Owner Maintenance

Overhead lights/Front map lights (LED type), Rear map lights (LED type), Vanity mirror lights (LED type) (Some Models), Courtesy lights, Trunk lights (LED type), Ambient Lights (Some Models)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorized Mazda Dealer when the replacement is necessary.

Overhead lights/Front map lights (Bulb type), Rear map lights (Bulb type), Vanity mirror lights (Bulb type) (Some Models)

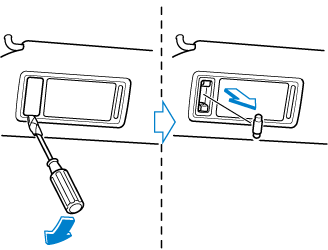

1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with the flathead screwdriver.

2. Disconnect the bulb by pulling it out.

   Overhead lights/Front map lights



   Rear map lights



   Vanity mirror lights (Some Models)



3. Install the new bulb in the reverse order of the removal procedure.

Trunk light (Bulb type)

1. Press both sides of the lens cap to remove it.

2. Disconnect the bulb by pulling it out.





3. Install the new bulb in the reverse order of the removal procedure.
