Bluetooth® Hands-Free

When connecting a Bluetooth® device (mobile phone) to the vehicle’s Bluetooth® unit via radio wave transmission, calls can be made or received.



  • Park the vehicle in a safe place and perform pairing.

  • The communication range of a Bluetooth® device is about 10 meters or shorter.

  • Some Bluetooth® mobile devices are not compatible with the vehicle. Consult an Authorized Mazda Dealer, Mazda's call center or Web support center for information regarding Bluetooth® mobile device compatibility:

    • Website: https://connect.mazda.com/en/

    • U.S.A.

      Phone: 800-430-0153

    • Canada

      Phone: 800-430-0153

    • Mexico

      Center of Attention to Client (CAC)

      Phone: 01-800-01-MAZDA

    • Australia

    • New Zealand

    • Germany

      Phone: 0800 4263 738 (8:00―18:00 Central European Time)

    • Europe (Except Germany)

      Phone: 00800 4263 7383 (8:00―18:00 Central European Time)

    • Worldwide

      Phone: 49 721 5099 8198 (8:00―18:00 Central European Time)

Close Note
View Note

Supported Bluetooth® standard (recommended)

(MAZDA 3*1, MAZDA CX-30*1)

Ver. 1.1/1.2/2.0 + EDR/2.1 + EDR/3.0 (conformity)

and devices that are compatible with Bluetooth® Ver. 3.0.

(MAZDA 3*1, MAZDA CX-30*1, MAZDA MX-30, MAZDA CX-50, MAZDA CX-60, MAZDA CX-90)

Ver. 1.1/1.2/2.0 + EDR/2.1 + EDR/3.0 (conformity)

and devices that are compatible with Bluetooth® Ver. 4.2.

  1. Differs depending on the vehicle’s period of manufacture.

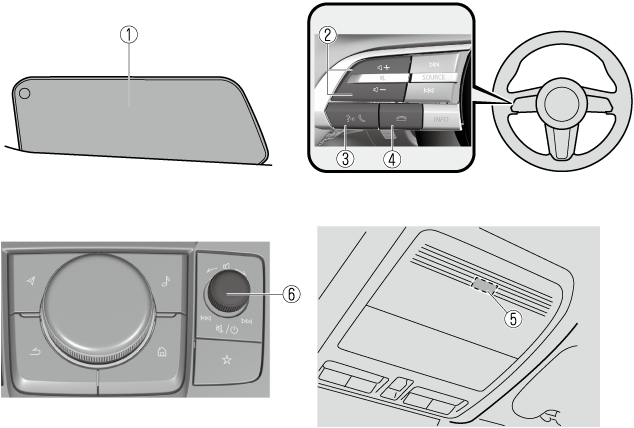

Component Parts

  1. Center display

  2. Volume adjustment button

  3. Talk/pick-up button

  4. Hang-up button

  5. Microphone

  6. Volume knob



The display and the shape of each switch may differ depending on the vehicle model.



Volume adjustment button

Adjusts the voice guidance and conversation volume.

Talk/pick-up button

Activates the voice recognition, skips the voice guidance.

In addition, when you press the button while on an incoming call, you can answer the call.

Hang-up button

Ends the call or refuses an incoming call.

In addition, it ends the voice recognition operation.

Volume knob

Adjusts the voice guidance and conversation volume the same as the volume adjustment button on the audio remote control switch. The volume increases by turning the dial clockwise, and decreases by turning it counterclockwise.

Microphone (hands-free)

The microphone is used for inputting a voice command using voice recognition or when making a hands-free call.



The Bluetooth® Call Volume is independent of the Bluetooth® Audio volume, which is also independent of the AM/FM/USB audio volume. Ensure that the Bluetooth® device volume is set at a reasonable level, and then adjust the call volume using the Mazda Connect volume knob.
