How to connect USB port/Auxiliary jack

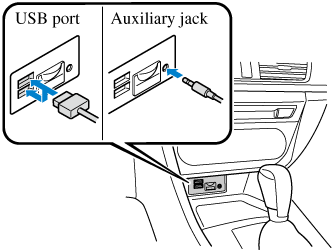

Type A

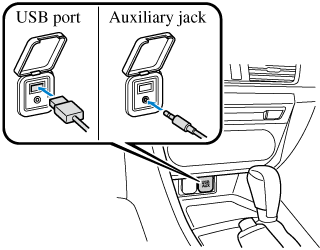

Type B (Without CD player)

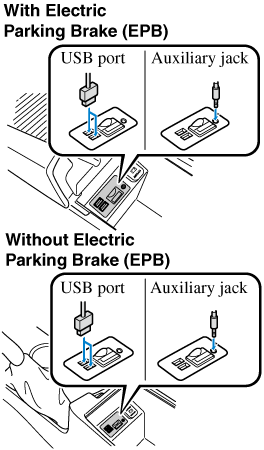

Type B (With CD player)



Connecting a device

  1. Open the console lid (with CD player).

  2. If there is a cover on the AUX jack or USB port, remove the cover.

  3. Connect the connector on the device to the USB port.

Connecting with a connector cable

  1. Open the console lid (with CD player).

  2. If there is a cover on the AUX jack or USB port, remove the cover.

  3. Connect the device plug/connector cable to the auxiliary jack/USB port. For vehicles with a CD player, pass the device plug/connector cable through the notch in the console and connect.



Do not allow the connection plug cord to get tangled with the parking brake (without electric parking brake (EPB)) or the shift lever (manual transaxle) or the selector lever (automatic transaxle):

Allowing the plug cord to become tangled with the parking brake (without electric parking brake (EPB)) or the shift lever (manual transaxle) or the selector lever (automatic transaxle) is dangerous as it could interfere with driving, resulting in an accident.

Close Warning
View Warning



Do not place objects or apply force to the auxiliary jack/USB port with the plug connected.

Close Caution
View Caution



  • Insert the plug into the auxiliary jack/USB port securely.

  • Insert or pull out the plug with the plug perpendicular to the auxiliary jack/USB port hole.

  • Insert or remove the plug by holding its base.

Close Note
View Note
