Fuse Panel Description

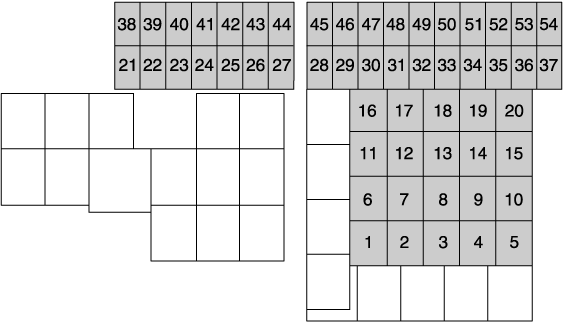

Fuse block (Engine compartment)



DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

WIPER.DEI

20 A

2

IG2

30 A

For protection of various circuits

3

INJECTOR

30 A

Engine control system

4

5

P.WINDOW1

30 A

Power windows (Some Models)

6

7

8

EVVT

20 A

Engine control system

9

DEFOG

40 A

Rear window defogger

10

11

R.HEATER

40 A

Air conditioner

12

EPB L

20 A

Electric parking brake (LH)

13

AUDIO

40 A

Audio system

14

EPB R

20 A

Electric parking brake (RH)

15

ENG.MAIN

40 A

Engine control system

16

ABS/DSC M

50 A

ABS, Dynamic stability control system

17

50 A

For protection of various circuits

18

WIPER

20 A

Front window wiper and washer

19

HEATER

40 A

Air conditioner

20

21

ENGINE.IG1

7.5 A

Engine control system

22

C/U IG1

15 A

For protection of various circuits

23

H/L LOW L

15 A

Headlight low beam (LH)

24

H/L LOW R1

15 A

25

ENGINE3

15 A

Engine control system

26

ENGINE2

15 A

Engine control system

27

ENGINE1

15 A

Engine control system

28

AT

15 A

Transaxle control system

29

H/CLEAN

20 A

30

A/C

7.5 A

Air conditioner

31

AT PUMP

15 A

32

STOP

10 A

Brake lights

33

R.WIPER

15 A

Rear window wiper

34

H/L HI

20 A

Headlight high beam

35

H/L LOW R2

15 A

Headlight low beam (RH)

36

FOG

15 A

Fog lights (Some Models)

37

7.5 A

Engine control system

38

AUDIO2

7.5 A

Audio system

39

INTERIOR

10 A

Overhead light

40

METER2

15 A

41

METER1

10 A

Instrument cluster

42

SRS1

7.5 A

Air bag

43

AUDIO4

10 A

Audio system (Some Models)

44

AUDIO1

25 A

Audio system

45

ABS/DSC S

30 A

ABS, Dynamic stability control system

46

47

ST.HEATER

15 A

Heated steering wheel (Some Models)

48

TAIL

15 A

Parking lights

49

FUEL PUMP2

25 A

Fuel system

50

HAZARD

25 A

Hazard warning flashers, Turn signal lights, Taillights

51

DRL

15 A

Daytime running lights

52

R.OUTLET2

15 A

Accessory sockets

53

HORN

15 A

Horn

54

ROOM

25 A

For protection of various circuits

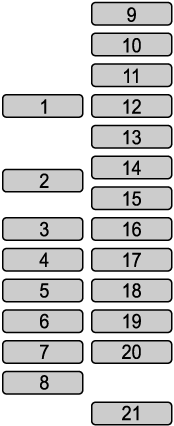

Fuse block (Left side)



DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

P.SEAT D

30 A

Power seat (Some Models)

2

P.WINDOW3

30 A

Power windows (Some Models)

3

R.OUTLET3

15 A

Accessory sockets

4

P.WINDOW2

25 A

Power windows

5

PLG

20 A

Power liftgate

6

D.LOCK

25 A

Power door locks

7

SEAT WARM

20 A

Seat warmer

8

SRS2/ESCL

15 A

9

SUNROOF

10 A

Moonroof

10

INTERIOR2

15 A

Audio system

11

7.5 A

Engine control system

12

MIRROR

7.5 A

Power control mirror

13

AT IND

7.5 A

AT shift indicator

14

F.OUTLET

15 A

Accessory sockets

15

R.OUTLET1

15 A

16

17

M.DEF

7.5 A

Mirror defogger

18

19

AUDIO3

15 A

Audio system

20

21

P.SEAT P

30 A

Power seat (Some Models)
