Fuel Economy Monitor

Fuel Economy Monitor

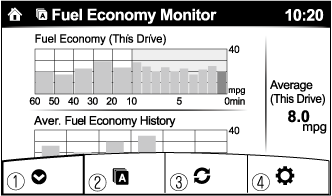

The Fuel Consumption information is displayed by operating each icon in the display.

In addition, after completing a trip, the total energy efficiency to date is displayed in the ending display when the ending display is turned on.

  1. Select the icon on the home screen to display the applications screen.

  2. Select the “Fuel Economy Monitor”.

  3. Operate the commander switch or touch the screen and display the menu.


    When the menu is displayed by touching the screen, the display is hidden automatically after 6 seconds.

    Close Note
    View Note
  4. Select the icon in the menu and perform the operation. Each icon operates as follows:

    Indication on display

    Control status

    Hides the menu display.

    Displays the application screen.

    Resets the fuel economy data.

    Displays the following setting screen.

    • Ending display on/off switching

    • On/off switching for function which synchronizes reset fuel economy data to trip meter (Trip A) (Type B instrument cluster only)
