Active Driving Display (Some Models)


Always adjust the display brightness and position with the vehicle stopped:

Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.

Close Warning
View Warning


  • Do not place beverages near the active driving display. If water or other liquids are splashed on the active driving display, it could cause damage.

  • Do not place objects above the active driving display or apply stickers to the dust-proof sheet/optical receiver as they will cause interference.

  • A sensor is integrated to control the display's luminosity. If the optical receiver is covered, the display's luminosity will lower making the display difficult to view.

  • Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

Close Caution
View Caution


  • It may be difficult to view the display when wearing polarized sunglasses. Take off your polarized sunglasses or adjust the luminosity.

  • If the battery has been removed and re-installed or the battery voltage is low, the adjusted position may deviate.

  • The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.

  • If the audio system is removed, the active driving display cannot be operated.

Close Note
View Note

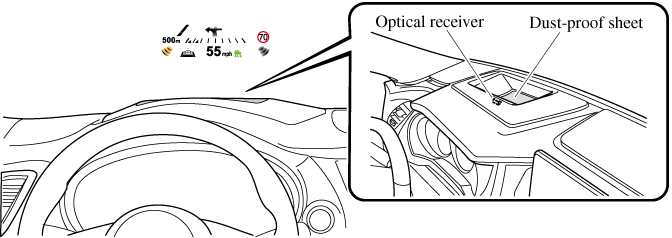

The active driving display indicates the following information:

  • Blind Spot Monitoring (BSM) Operation Conditions and Warnings

    Refer to Blind Spot Monitoring (BSM) (Search).

  • Distance Recognition Support System (DRSS) Operation Conditions and Warnings

    Refer to Distance Recognition Support System (DRSS) (Search).

  • Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings

    Refer to Mazda Radar Cruise Control (MRCC) (Search).

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation Conditions and Warnings

    Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

  • Smart City Brake Support (SCBS) Warnings

    Refer to Smart City Brake Support (SCBS) (Search).

  • Smart Brake Support (SBS) Operation Conditions and Warnings

    Refer to Smart Brake Support (SBS) (Search).

  • Cruise Control Operation Conditions

    Refer to Cruise Control (Search).

  • Navigation Guidance (vehicles with navigation system)

  • Speed limit indicator (vehicles with navigation system)

  • Vehicle Speed

Each setting/adjustment for the active driving display can be performed on the center display.

  1. Select the icon on the home screen and display the Settings screen.

  2. Select the AD-Disp tab.

  3. Select the desired item and perform the setting/adjustment.

    • Method for adjusting screen brightness (automatically/manually)

    • Screen brightness initial settings (automatic adjustment is selected)

    • Screen brightness adjustment (manual adjustment is selected)

    • Display position of active driving display (display height)

    • Active driving display angle adjustment (display angle correction)

    • Turn by turn (TBT) display/non-display (navigation guidance)

    • Street name display timing can be changed (navigation guidance)

    • Active driving display ON/OFF (indication)

    • Reset settings (reset)


The desired driving position (display position, brightness level, display information) can be called up after programming the position.

Refer to Driving Position Memory (Search).

Close Note
