Flat Tire

To remove the jack

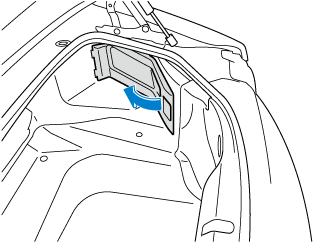

1. Remove the cover.





2. Turn the wing bolt and jack screw counterclockwise.





To secure the jack

1. Insert the wing bolt into the jack with the jack screw pointing back and turn the wing bolt clockwise to temporarily tighten it.

2. Turn the jack screw clockwise.





3. Turn the wing bolt completely to secure the jack.



   ---

   If the jack is not completely secured, it could rattle while driving. Make sure the jack screw is sufficiently tightened.

   Close Note

   View Note

4. Insert the cover tabs and install the cover.



   ---

   Verify that the cover is securely installed.

   Close Note

   View Note

Maintenance

• Always keep the jack clean.

• Make sure the moving parts are kept free from dirt or rust.

• Make sure the screw thread is adequately lubricated.
