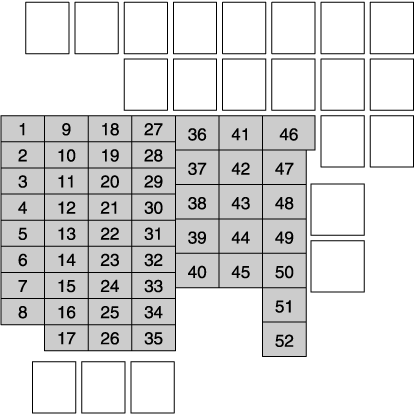

Owner Maintenance

1

ENG IG3

5 A

―

2

ENG IG2

5 A

―

3

HORN2

7.5 A

Horn

4

C/U IG1

15 A

For protection of various circuits

5

ENG IG1

7.5 A

Engine control system

6

―

―

―

7

INTERIOR

15 A

Overhead light

8

ENGB

7.5 A

Engine control system

9

AUDIO2

15 A

Audio system

10

METER1

10 A

Instrument cluster

11

SRS1

7.5 A

Air bag

12

―

―

―

13

RADIO

7.5 A

Audio system

14

ENGINE3

20 A

Engine control system

15

ENGINE1

10 A

Engine control system

16

ENGINE2

15 A

Engine control system

17

AUDIO1

25 A

Audio system

18

A/C MAG

7.5 A

Air conditioner

19

AT PUMP

H/L HI

20 A

Transmission control system (Some Models)

20

AT

15 A

Transmission control system (Some Models)

21

D LOCK

25 A

Power door locks

22

H/L RH

20 A

Headlight (RH)

23

ENGB2

7.5 A

Engine control system

24

TAIL

20 A

Taillights, License plate lights, Parking lights

25

DRL

15 A

―

26

ROOM

25 A

Overhead light

27

FOG

15 A

―

28

H/CLEAN

20 A

―

29

STOP

10 A

Brake lights

30

HORN

15 A

Horn

31

H/L LH

20 A

Headlight (LH)

32

ABS/DSC S

30 A

ABS, Dynamic stability control system

33

HAZARD

15 A

Hazard warning flashers, Turn signal lights

34

FUEL PUMP

15 A

Fuel system

35

ENGB3

5 A

―

36

WIPER

20 A

Windshield wipers

37

CABINB

50 A

For protection of various circuits

38

―

―

―

39

―

―

―

40

ABS/DSC M

50 A

ABS, Dynamic stability control system

41

EVVT

A/R PUMP

20 A

Engine control system

42

EVPS

30 A

Brake control system

43

FAN1

30 A

Cooling fan

44

FAN2

40 A

―

45

ENG.MAIN

40 A

Engine control system

46

EPS

60 A

Power steering system

47

DEFOG

30 A

Rear window defogger

48

IG2

30 A

For protection of various circuits

49

INJECTOR

30 A

Engine control system

50

HEATER

40 A

Air conditioner

51

―

―

―

52

―

―

―

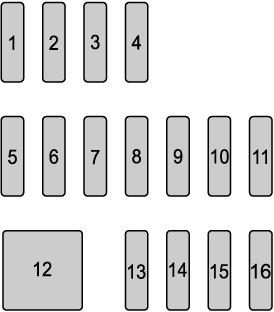

1

RHT R

30 A

Retractable fastback (RH) (Some Models)

2

RHT L

30 A

Retractable fastback (LH) (Some Models)

3

―

―

―

4

―

―

―

5

F.OUTLET

15 A

Accessory sockets

6

―

―

―

7

AT IND

7.5 A

AT shift indicator (Some Models)

8

MIRROR

7.5 A

Power control mirror

9

R_DECK R

30 A

Retractable fastback (RH) (Some Models)

10

R_DECK L

30 A

Retractable fastback (LH) (Some Models)

11

F.WASHER

15 A

Windshield washer

12

P.WINDOW

30 A

Power windows

13

―

―

―

14

SRS2/ESCL

15 A

―

15

SEAT WARM

20 A

Seat warmer (Some Models)

16

M.DEF

7.5 A

Mirror defogger (Some Models)
