Convertible Top (Soft Top)
Before DrivingConvertible Top (Soft Top)Convertible Top (Soft Top)

Raising the Convertible Top

  1. Make sure the parking brake is applied.

  2. If the engine is running, turn it off.

  3. Pull up the unlock lever to disengage the lock.



  4. Standing outside of the vehicle, hold the convertible top along the front edge and pull it towards the vehicle front.





    • If the power windows do not go down automatically, fully open the windows or open the doors.

    • To raise the convertible top from inside the vehicle, use the convertible top's handles.



    Close Note
    View Note

  5. Sitting in a seat, grasp the convertible top's handles, and press the convertible top against the windshield.

    Make sure the striker engages with the anchor, move the top latch slowly, and then push the top latch upward until a latch sound is heard.





  • Driving with the convertible top not fully locked could damage the convertible top.

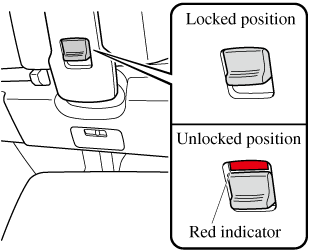

    If the red indicator is visible on the lock release button, the convertible top is not locked. After locking the convertible top, verify that the red indicator is not visible.



  • Do not spray water directly near the seam of the window and convertible top when flushing away dirt on the soft top with water. Otherwise, water may enter the vehicle.

    Refer to Convertible Top Maintenance (Search).

Close Caution
View Caution



  • The convertible top may be constricted if it is left retracted for a long period. Therefore, if the top has become constricted, it may be difficult to hook the top latch striker to the anchor.

  • Make sure the convertible top is securely locked by pushing up on it. If it still sounds loose (rattles) after being locked by the top latch, have it inspected at an Authorized Mazda Dealer.
