Spare Tire and Tool Storage
Changing a Flat Tire
If Trouble ArisesFlat TireSpare Tire and Tool Storage

Jack

To remove the jack

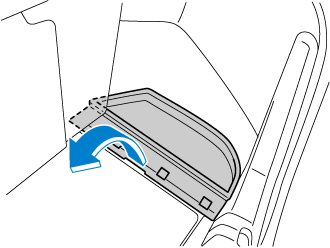

  1. Lift the trunk mat.



  2. Remove the pocket.

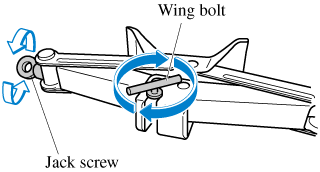

  3. Turn the wing bolt and jack screw counterclockwise.



To secure the jack

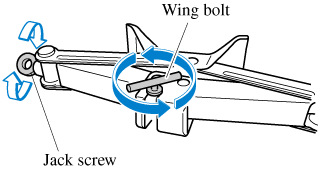

  1. Insert the wing bolt into the jack with the jack screw pointing to the front and turn the wing bolt clockwise to temporarily tighten it.

  2. Turn the jack screw in the direction shown in the figure.



  3. Turn the wing bolt completely to secure the jack.



If the jack is not completely secured, it could rattle while driving. Make sure the jack screw is sufficiently tightened.

Close Note
View Note

Maintenance

  • Always keep the jack clean.

  • Make sure the moving parts are kept free from dirt or rust.

  • Make sure the screw thread is adequately lubricated.
