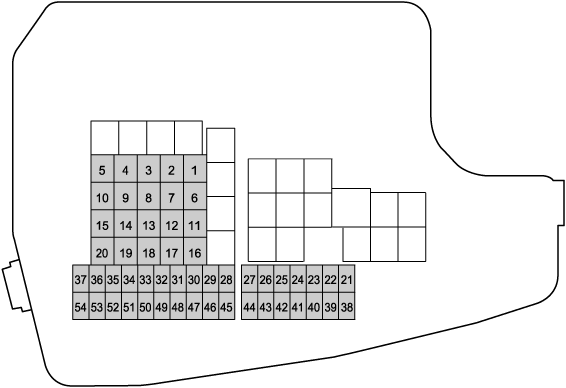

Owner Maintenance

1

ADD FAN GE

30 A

Cooling fan

2

IG2

30 A

For protection of various circuits

3

INJECTOR

30 A

Engine control system

4

FAN DE

40 A

―

5

P.WINDOW1

30 A

―

6

―

―

―

7

ADD FAN DE

40 A

―

8

EVVT

SCR1

20 A

Engine control system

9

DEFOG

40 A

Rear window defogger

10

DCDC DE

40 A

―

11

FAN GE

30 A

Cooling fan

12

EPB L

20 A

Electric parking brake (LH)

13

AUDIO

40 A

Audio system

14

EPB R

20 A

Electric parking brake (RH)

15

ENG.MAIN

40 A

Engine control system

16

ABS/DSC M

50 A

ABS, Dynamic stability control system

17

50 A

For protection of various circuits

18

WIPER

20 A

Front window wiper and washer

19

HEATER

40 A

Air conditioner

20

DCDC REG

30 A

―

21

ENGINE.IG1

7.5 A

Engine control system

22

C/U IG1

15 A

For protection of various circuits

23

H/L LOW L

HID L

15 A

Headlight low beam (LH)

24

H/L LOW R

15 A

Headlight low beam (RH)

25

ENGINE3

15 A

Engine control system

26

ENGINE2

15 A

Engine control system

27

ENGINE1

15 A

Engine control system

28

AT

15 A

Transaxle control system (Some Models), Ignition switch

29

H/CLEAN

20 A

―

30

A/C

7.5 A

Air conditioner

31

AT PUMP

15 A

―

32

STOP

10 A

Brake lights

33

R.WIPER

15 A

Theft-deterrent system (Some Models)

34

H/L HI

20 A

Headlight high beam

35

HID R

ST.HEATER

15 A

Heated steering wheel (Some Models)

36

FOG

15 A

Fog lights (Some Models)

37

7.5 A

Engine control system

38

AUDIO2

7.5 A

Audio system

39

GLOW SIG

5 A

―

40

METER2

7.5 A

―

41

METER1

10 A

Instrument cluster

42

SRS1

7.5 A

Air bag

43

BOSE

25 A

Bose^® Sound System-equipped model (Some Models)

44

AUDIO1

15 A

Audio system

45

ABS/DSC S

30 A

ABS, Dynamic stability control system

46

FUEL PUMP

15 A

Fuel system

47

FUEL WARM

25 A

―

48

TAIL

15 A

Taillights, License plate lights

49

FUEL PUMP2

SCR2

25 A

―

50

HAZARD

25 A

Hazard warning flashers, Turn signal lights/Front side-marker lights, Parking lights

51

DRL

15 A

Daytime running lights (Some Models)

52

R.OUTLET2

15 A

Accessory sockets

53

HORN

15 A

Horn

54

ROOM

15 A

Overhead light

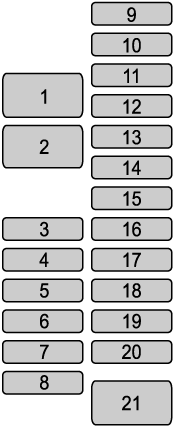

1

P.SEAT D

30 A

Power seat (Some Models)

2

P.WINDOW3

30 A

Power windows

3

R.OUTLET3

15 A

―

4

P.WINDOW2

25 A

Power windows

5

SRS2/ESCL

15 A

―

6

D.LOCK

25 A

Power door locks

7

SEAT WARM

20 A

Seat warmer (Some Models)

8

SUNROOF

10 A

Moonroof (Some Models)

9

F.OUTLET

15 A

Accessory sockets

10

MIRROR

7.5 A

Power control mirror

11

R.OUTLET1

15 A

―

12

―

―

―

13

―

―

―

14

―

―

―

15

―

―

―

16

―

―

―

17

M.DEF

7.5 A

Mirror defogger (Some Models)

18

R.SEAT W

20 A

Seat warmer (Some Models)

19

R.SHADE

7.5 A

―

20

AT IND

7.5 A

AT shift indicator (Some Models)

21

P.SEAT P

30 A

Power seat (Some Models)
