Maintenance Monitor

Maintenance Monitor

  1. Select the icon on the home screen to display the “Applications” screen.

  2. Select “Vehicle Status Monitor”.

  3. Select “Maintenance” to display the maintenance list screen.

  4. Switch the tab and select the setting item you want to change.

You can customize settings in the setup display as follows:

Tab

Item

Explanation

Scheduled

Setting

Notification can be switched on/off.

Time (months)

Displays the time or distance until maintenance is due.

Select this item to set the maintenance period.

The wrench indication/indicator light in the instrument cluster will be illuminated when the remaining distance is less than 1,000 km or 600 mile, or the remaining number of days is less than 15 (whichever comes first).

Distance (mile or km)

Reset

Resets the time and distance to the initial values.

Once the system turns on, it needs to be reset whenever carrying out maintenance.

Tire Rotation

Setting

Notification can be switched on/off.

Distance (mile or km)

Displays the distance until tire rotation is due.

Select this item to set the tire rotation distance.

The wrench indication/indicator light in the instrument cluster will be illuminated when the remaining distance is less than 1,000 km or 600 mile.

Reset

Resets the remaining distance to the initial value.

Once the system turns on, it needs to be reset whenever rotating the tires.

Oil Change

Setting Interval

Oil replacement period can be selected from the flexible setting or fixed setting, or it can be set to non-display.

The flexible setting is available only in the United States and Puerto Rico. Once engine oil flexible maintenance is selected, the vehicle calculates the remaining oil life based on the engine operating conditions.

The vehicle lets you know when an oil change is due by illuminating the wrench indication/indicator light in the instrument cluster.

Distance (mile or km)

(Displays only in fixed setting)

Displays the distance until the oil replacement is due.

Select this item to set the oil replacement distance.

The wrench indication/indicator light in the instrument cluster will be illuminated when the remaining distance is less than 1,000 km or 600 mile.

Distance (mile or km)

(Displays only in flexible setting)

Displays the distance until the oil replacement is due.

The wrench indication/indicator light in the instrument cluster will be illuminated when the remaining oil life distance is less than 1,000 km or 600 mile, or remaining days are less than 15 (whichever comes first).

Reset

In flexible setting

Resets the remaining distance until oil replacement is due to the initial value.

In fixed setting

Resets the remaining distance until oil replacement is due to the initial value. In addition, a vehicle engine control unit reset is required as follows:

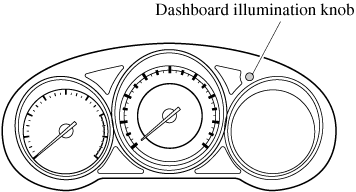

Press and hold the dashboard illumination knob with the ignition switched OFF, then switch it ON. Keep pressing the dashboard illumination knob for more than 7 seconds.

In OFF setting

Press and hold the dashboard illumination knob with the ignition switched OFF, then switch it ON. Keep pressing the dashboard illumination knob for more than 7 seconds.
