Meters and Gauges
Multi-information Display and INFO Switch (Some Models)
Active Driving Display (Some Models)
Warning/Indicator Lights

Dashboard Illumination

(Without auto-light control)

When the position lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control)

When the position lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the position lights are turned on in the daytime, the dashboard illumination does not dim.




  • (With auto-light control)

    When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimmer may cancel after the brightness is detected.

  • When the position lights are turned on, the position lights indicator light in the instrument cluster turns on.

    Refer to Headlights (Search).

Close Note
View Note

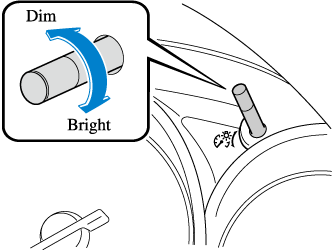

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

  • The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

  • The brightness increases by rotating the knob to the right.

Function for cancelling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.




  • (With Multi-information Display)

    The illumination dimmer can be canceled by pressing the dashboard illumination knob.

  • When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the position lights are turned on.

  • When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note
View Note
