Mounting the Spare Tire
-

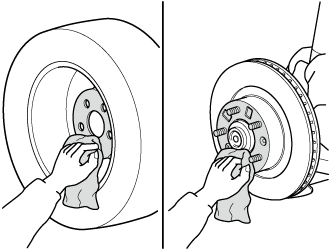

Remove dirt and grime from the mounting surfaces of the wheel and hub, including the hub bolts, with a cloth.
Make sure the mounting surfaces of the wheel, hub and lug nuts are clean before changing or replacing tires:
When changing or replacing a tire, not removing dirt and grime from the mounting surfaces of the wheel, hub and hub bolts is dangerous. The lug nuts could loosen while driving and cause the tire to come off, resulting in an accident.
Close Warning
View Warning
-
Mount the spare tire.
-

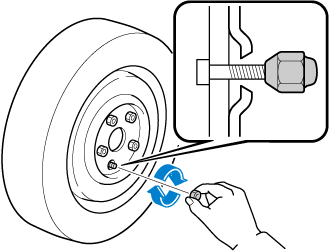

Install the lug nuts with the beveled edge inward; tighten them by hand.
Do not apply oil or grease to lug nuts and bolts and do not tighten the lug nuts beyond the recommended tightening torque:
Applying oil or grease to lug nuts and bolts is dangerous. The lug nuts could loosen while driving and cause the tire to come off, resulting in an accident. In addition, lug nuts and bolts could be damaged if tightened more than necessary.
Close WarningView Warning -

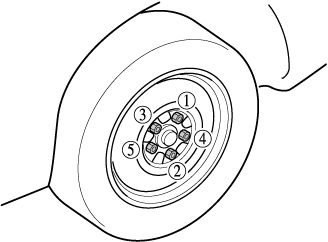

Turn the lug wrench counterclockwise and lower the vehicle. Use the lug wrench to tighten the nuts in the order shown.
If you are unsure of how tight the nuts should be, have them inspected at an Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)
108―147 (12―14, 80―108)
Always securely and correctly tighten the lug nuts:
Improperly or loosely tightened lug nuts are dangerous. The wheel could wobble or come off. This could result in loss of vehicle control and cause a serious accident.
Be sure to reinstall the same nuts you removed or replace them with metric nuts of the same configuration:
Because the wheel studs and lug nuts on your Mazda have metric threads, using a non-metric nut is dangerous. On a metric stud, it would not secure the wheel and would damage the stud, which could cause the wheel to slip off and cause an accident.
Close WarningView Warning -
(Aluminum wheel equipped vehicle)
Remove the center cap by tapping it with the lug wrench.
-
Store the damaged tire, using the tire hold-down bolt to hold it in place.
-
Remove the tire blocks and store the tools and jack.
-
Check the inflation pressure. Refer to Tires (Search).
-
Have the flat tire repaired or replaced as soon as possible.
Do not drive with any tires that have incorrect air pressure:
Driving on tires with incorrect air pressure is dangerous. Tires with incorrect pressure could affect handling and result in an accident. When you check the regular tires' air pressure, check the spare tire, too.
To prevent the jack and tool from rattling, store them properly.
