Seat Position Memory (Driver's seat) (Some Models)

The seat position memory function allows you to program the driver's seat to a desired seat position and to call up a programmed position with the simple touch of a button.



Do not place fingers or hands around the bottom of the seat while the seat memory function is operating. The seat moves automatically while the seat memory function is operating and fingers or hands could get pinched and injured.

Close Caution
View Caution

The seat position can be programmed or operated using the following operations.

  • Operation of the buttons on the side of the seat.

  • Operation using the key.



  • Individual seat positions can be programmed to the two available programming buttons on the side of the driver's seat, plus one seat position for each registered key.

  • If the vehicle has been serviced and the battery cables disconnected, the programmed seat positions will have been erased. Re-program the seat positions.

Close Note
View Note

Programming

  1. Switch the ignition OFF.

  2. Adjust the seat to the desired position using the slide lifter and reclining switches.

    Refer to Seat Operation (Search).

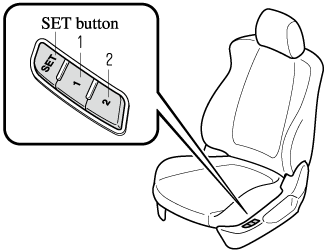

  3. Press the SET button on the seat until a beep sound is heard one time.

  4. Perform one of the following settings within 5 seconds of completing step 3 above:

    • Programming to a button on the seat side

      Press the button you want to program, either button 1 or 2, until a beep sound is heard one time.

    • Programming to the key

      Press the key switch until a beep sound is heard one time.



If a beep sound is heard three times, the operation is canceled.

Close Note
View Note

Adjusting a programmed position

(Programming to a button on the seat side)

  1. While the vehicle is stopped, press the programming button for the seat position you want to call up (button 1 or 2).

  2. A beep sound is heard when the seat position adjustment is completed.



  • If seat movement is not required, only the beep sounds.

  • When the ignition is switched ON, the seat position memory function does not operate unless the selector lever is in the P position (Automatic transaxle) or the parking brake is applied (Manual transaxle).

  • When the ignition is switched OFF, the seat position memory function is operable while the selector lever is in a position other than P position (Automatic transaxle) or the parking brake is not applied (Manual transaxle), however, if the ignition is switched ON while the seat position memory function is operating, the operation is stopped.

  • The seat position adjustment is canceled in the following cases:

    • Any of the seat adjustment switches is operated.

    • The SET button is pressed.

    • Programming button 1 or 2 is pressed.

    • The key lock switch or unlock switch is operated.

    • The vehicle starts moving.

Close Note
View Note

(When programming to the key)

  1. Unlock the doors by pressing a request switch or the key switch.

  2. After unlocking the doors, the seat position adjustment begins within 40 seconds of opening the driver's door, and a beep sounds when the operation is finished.



  • If there is no seat position movement, a beep is not heard.

  • When the ignition is switched ON, the seat position memory function does not operate unless the selector lever is in the P position (Automatic transaxle) or the parking brake is applied (Manual transaxle).

  • When the ignition is switched OFF, the seat position memory function is operable while the selector lever is in a position other than P position (Automatic transaxle) or the parking brake is not applied (Manual transaxle), however, if the ignition is switched ON while the seat position memory function is operating, the operation is stopped.

  • The seat position adjustment is canceled in the following cases:

    • Any of the seat adjustment switches is operated.

    • The SET button is pressed.

    • Programming button 1 or 2 is pressed.

    • The key switch or switch is operated.

    • The vehicle starts moving.

Close Note
View Note

Erasing programmed seat positions

(Erasing the seat positions programmed to the key)

  1. Switch the ignition OFF.

  2. Press the SET button on the seat until a beep sound is heard one time.

  3. After the beep sounds, press the key switch within 5 seconds until a beep sound is heard one time.



If a beep sound is heard three times, the operation is canceled.
